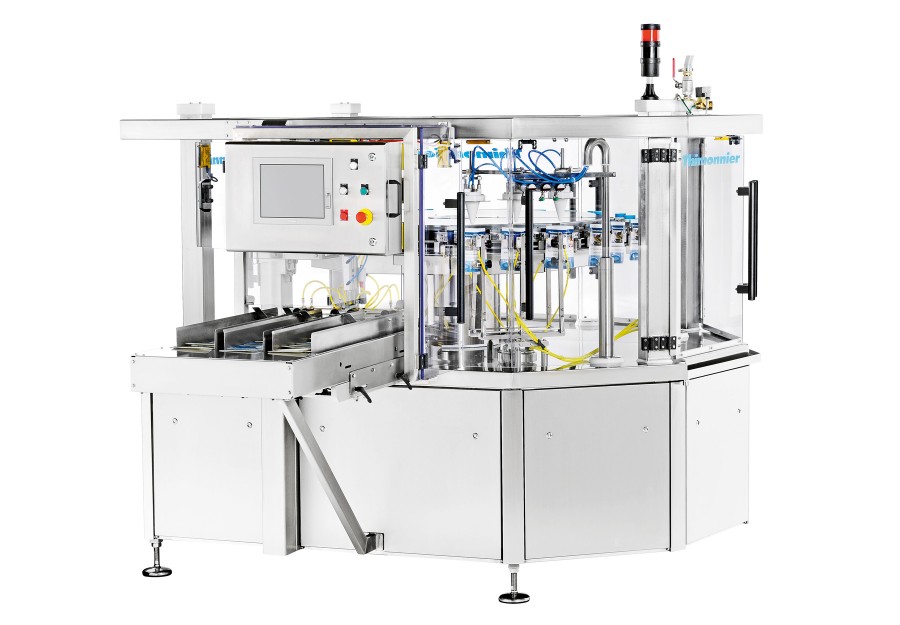

THD900 FOOD

FILLING/SEALING FOR DOYPACK® POUCHES

DOYPACK® PREMADE POUCH

NEW GENERATION OF FILLING AND SEALING MACHINE FOR DOYPACK® STAND UP POUCHES

EASY MAINTENANCE

EASY CLEANING AND ACCESSIBILITY

USER FRIENDLY

FLEXIBILITY (MONO/DUO/TRIO MODE)

MINIMAL FOOTPRINT

AGRO/FOOD

MILK AND DAIRY PRODUCTS, FRUIT JUICES AND NECTARS, SOUPS AND SAUCES, EDIBLE OILS, VEGETABLES, RICE, RETORTABLE DISHES, BABY FOOD, OLIVES, PET FOOD, COFFEE, TEA, CHEESE, SUGAR, SEAFOOD, HONEY…

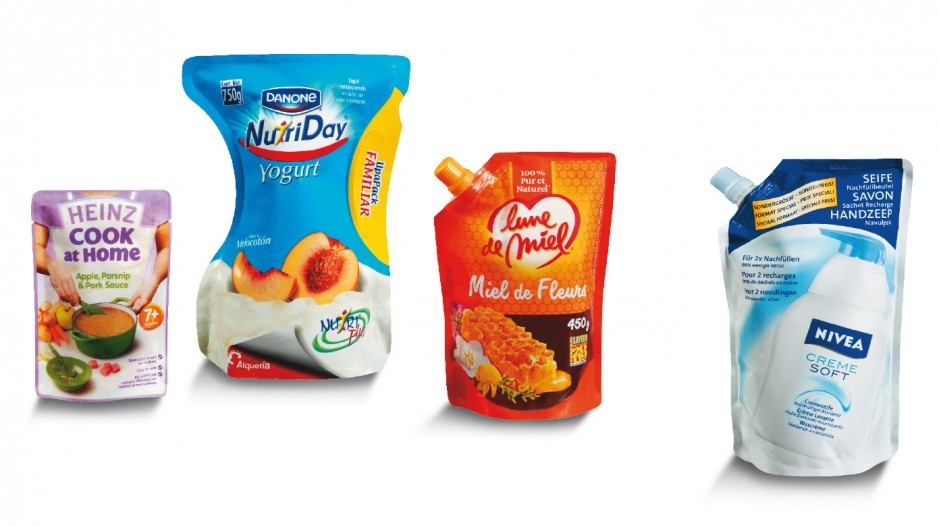

  • INVERTED STAND UP POUCH
  • SHAPED POUCH
  • SHAPED STAND UP POUCH WITH TOP CAP

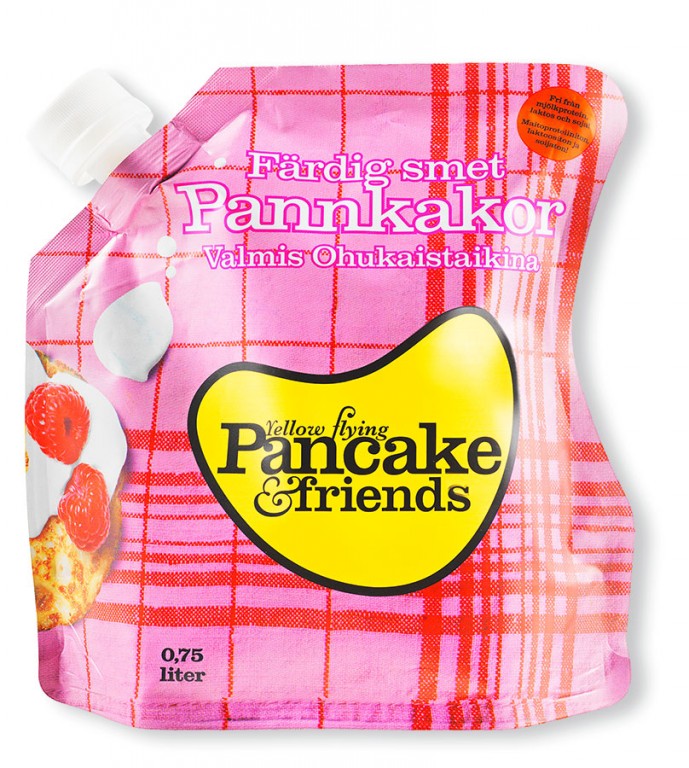

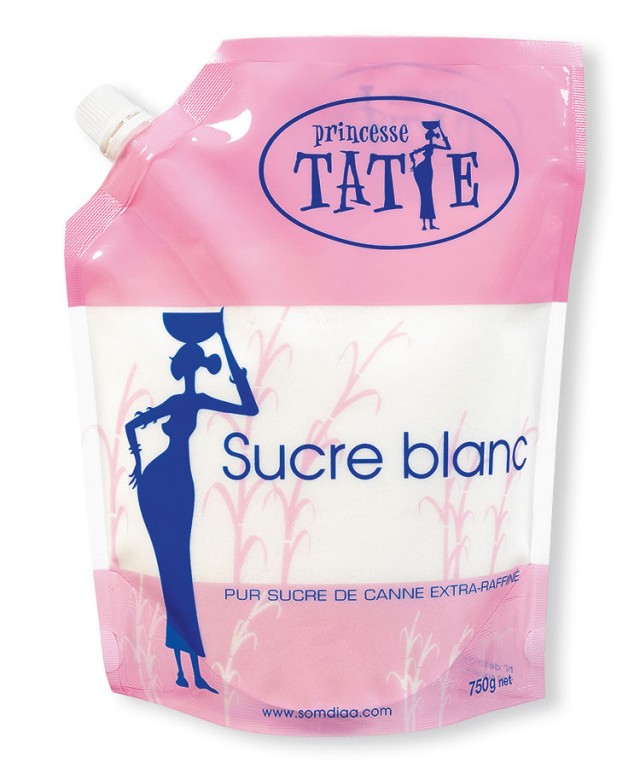

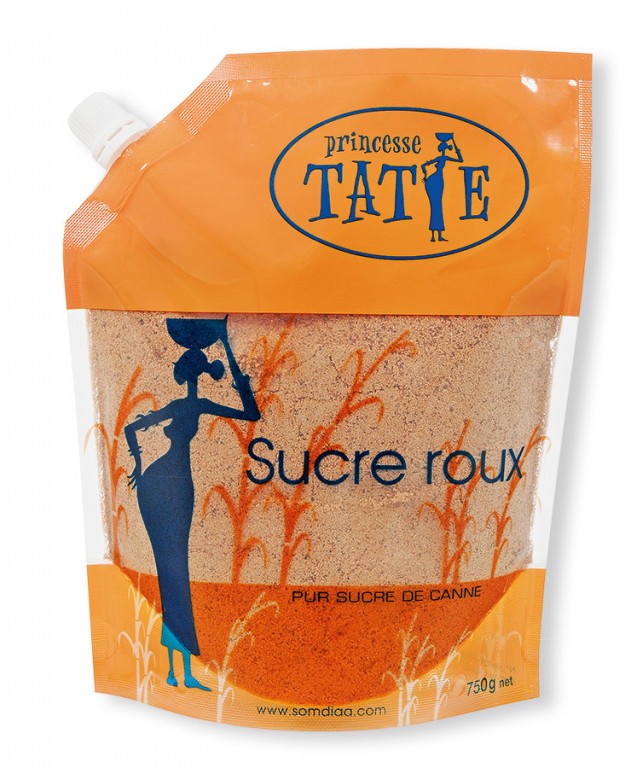

  • SPOUTED POUCH WITH CAP ON THE CORNER
  • SPOUTED POUCH WITH TOP CAP
  • STRAIGHT POUCH

TECHNICAL SPECIFICATIONS

OUTPUT: 135 POUCHES/ MIN

POUCHES VOLUME: 50 ML TO 5 L



DESIGNED FOR WORKING IN DIFFICULT AND AGGRESSIVE ENVIRONMENTS, THE THD 900 IS PERFECTLY ADAPTED TO FILL AND SEAL THE PREMADE DOYPACK® POUCHES (WITH OR WITHOUT CAPS).

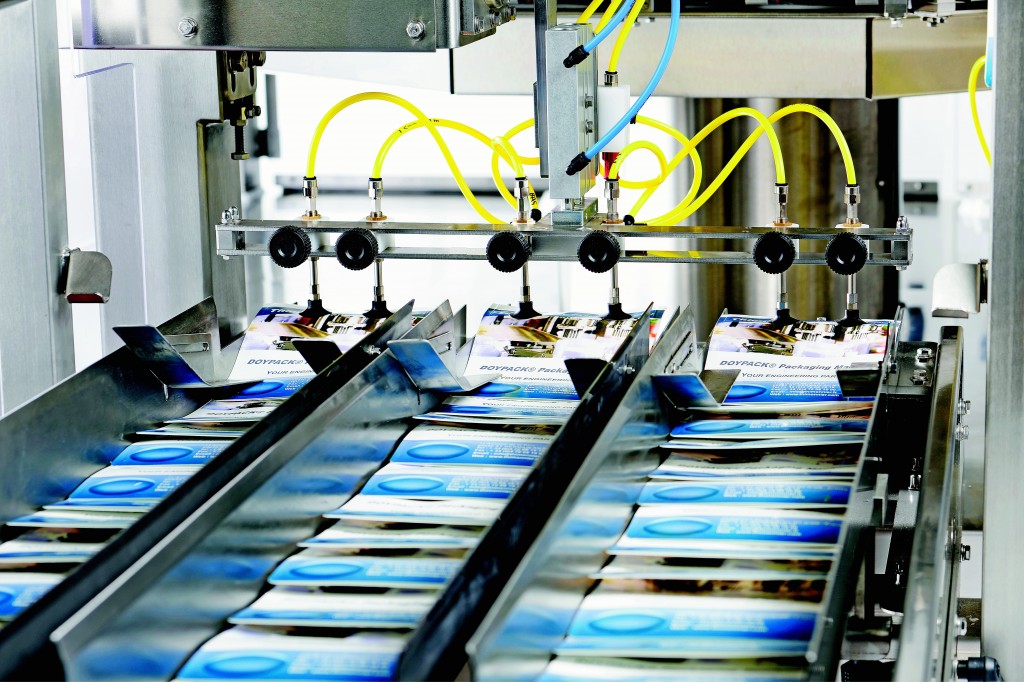

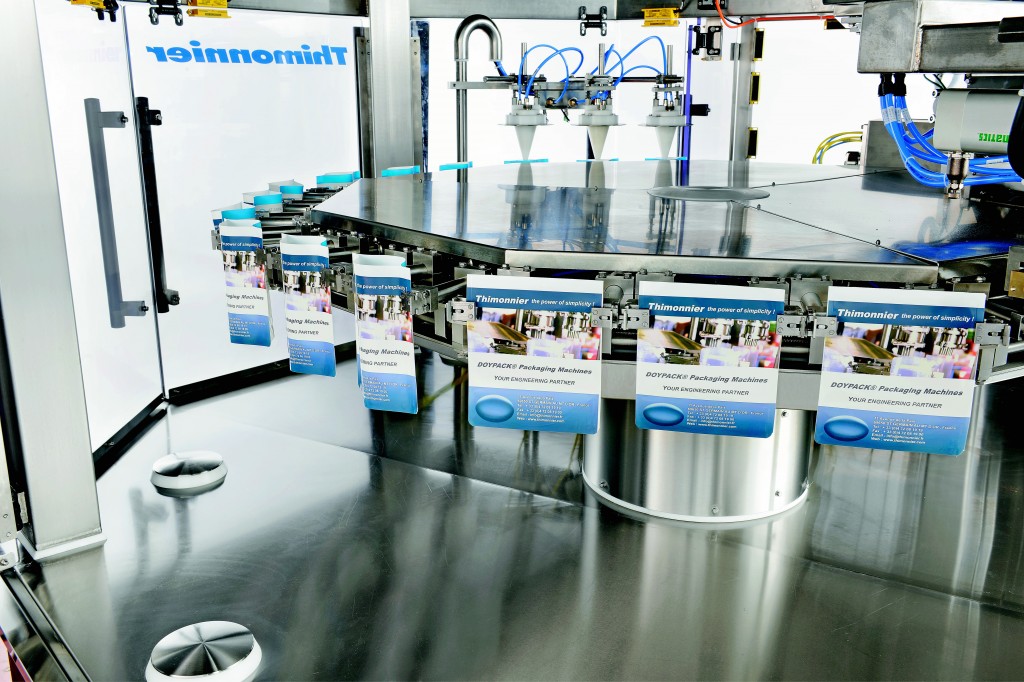

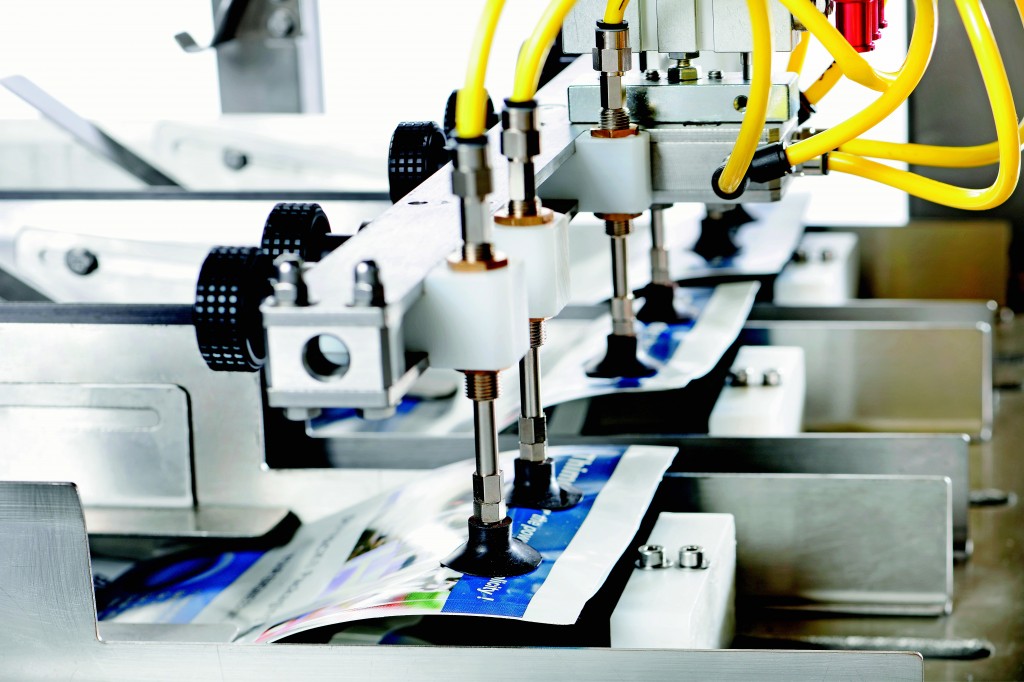

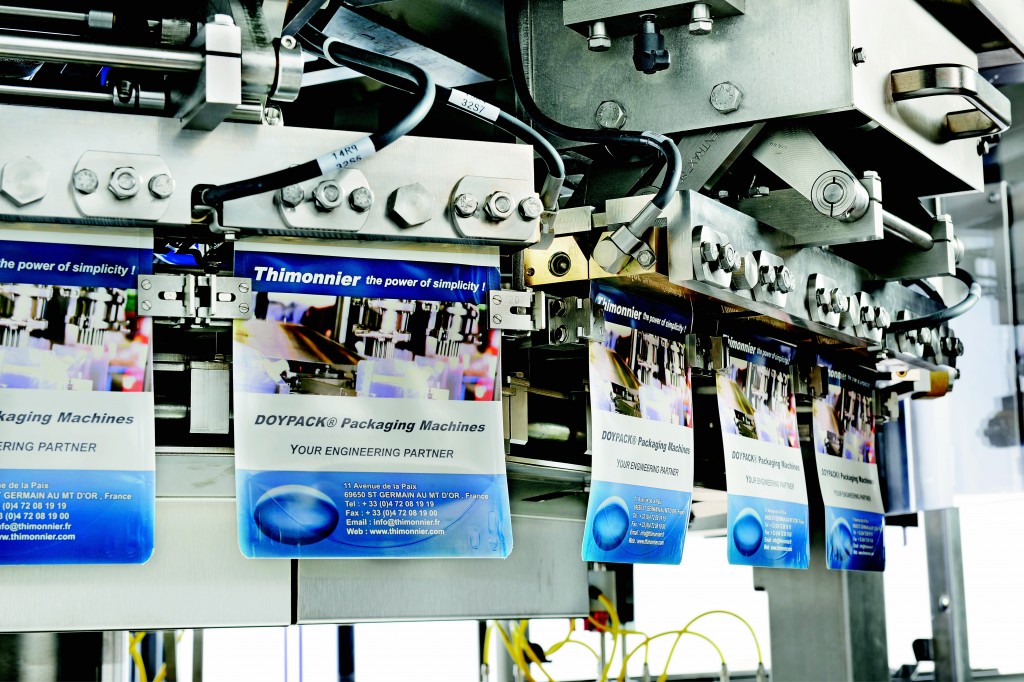

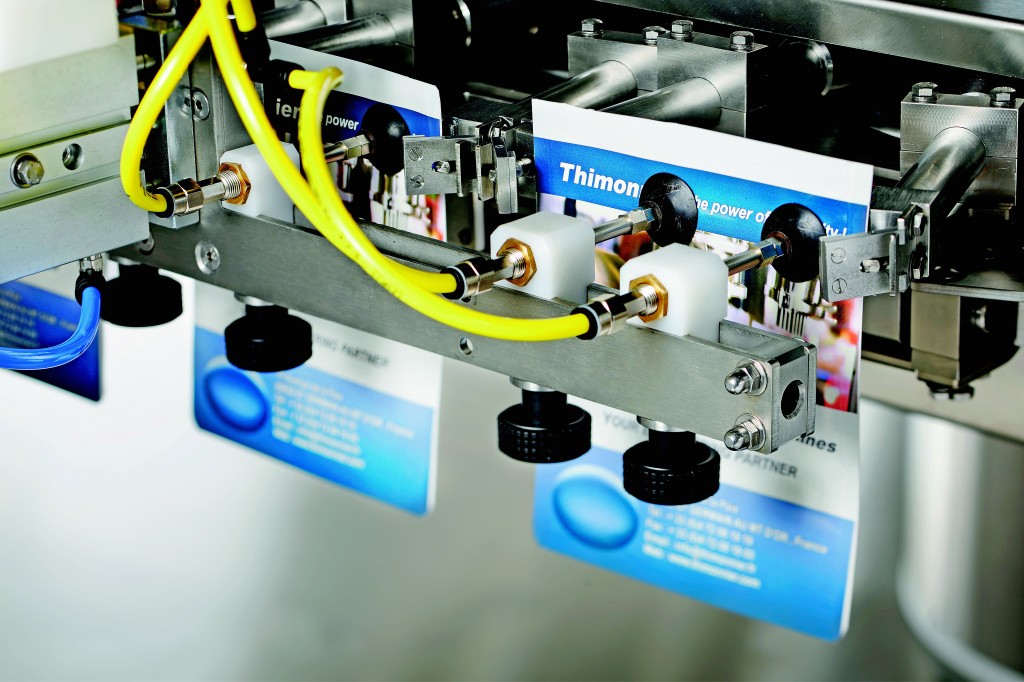

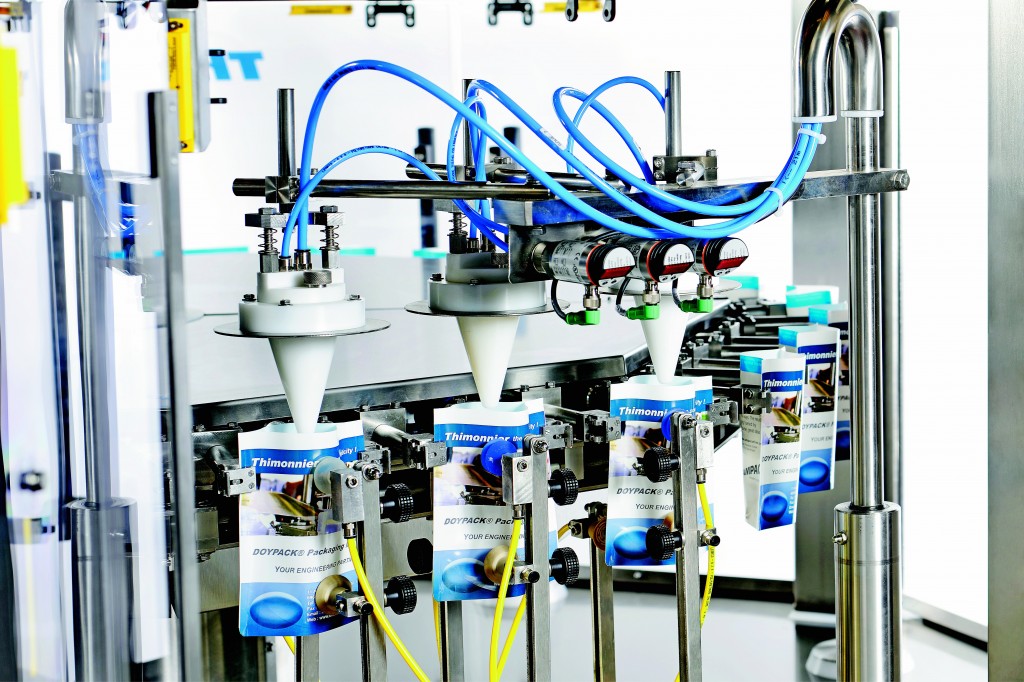

9 STATIONS (up to 3 dosing stations) allow various lay outs for filling, sealing and fitting accessories. Secured by the carrousel grippers, the pouches are opened, filled, sealed, cooled and ejected.

Motions (rotation of the turret, opening grippers and regulations) are controlled by servo-motors.

The THD900 has been built to facilitate adjustments. The THD900 is able to package in “mono” (1 pouch/cycle), “duo” (2 pouches/cycle) or “trio” mode (3 pouches/cycle).

An integrated logic controller (in several languages) and one state of the art electronics insure high precision performances and repeatability throughout simple operating commands. A storage capacity of 100 programs favors a fast change of sizes.

STANDARD EQUIPMENT

Welded steel structure mechanic, covered with stainless steel protections

Easy cleaning of production enclosure: No contact between delicate parts and the dosed product

Access through transparent doors to the workstations with integrated security system

Motions of the carrousel and grippers are controlled by servo-motors

Defects historisation and programmable logic controller
Recording and storage of an infinite number of recipes

Continuous adjustment of mechanical speed from 10 to 60 cycles/min depending on pouch volume and product type (displayed on touch screen)

Filling juices

UNITED ARAB EMIRATES

Full SD4 line [Doypack® pouch] and D6-5 [hot filling of 200 ml sta nd-up pouches]

- High output filling [15 000 pph]
- Flexibility of the line operation

Filling condensed sweetened milk, cream

COLOMBIA

Ultra-clean TD1000 DUO machine

- Specific design for Nestlé
- Clean dosing
- Efficiency of the sealing
- Respect of the hygienic requirements

Filling honey in SUP DOYPACK®

FRANCE

THD800 machine with lobes pump and electromagnetic flowmeter

- High accuracy for a product with a variable viscosity

Filling edible palm oil in SUP DOYPACK®

INDONESIA

TD1500 machine

- Clean dosing
- Efficiency of the sealing
- Production flexibility
