SF RANGE FOOD - SF100, SF102, SF202, SF302

SPOUT FILLING/CAPPING MACHINE

DOYPACK® PREMADE POUCH

NEW GENERATION OF MACHINES FOR SPOUTED STAND UP DOYPACK® & INVERTED POUCHES

EASY MAINTENANCE

EASY CLEANING - ACCESSIBILITY

USER FRIENDLY

FLEXIBILITY (MODE IN 2, 4 OU 6 LINES)

MINIMAL FOOTPRINT

AGRO/FOOD

FRUIT PUREE, BABY FOOD, CHESTNUT CREAM, YOGURT AND DAIRY PRODUCTS, FRUIT AND NECTAR JUICES, SOUPS AND SAUCES, EDIBLE OIL, LIQUID CHEESE, HONEY…

  • INVERTED STAND UP POUCH
  • SHAPED POUCH
  • SHAPED STAND UP POUCH WITH TOP CAP

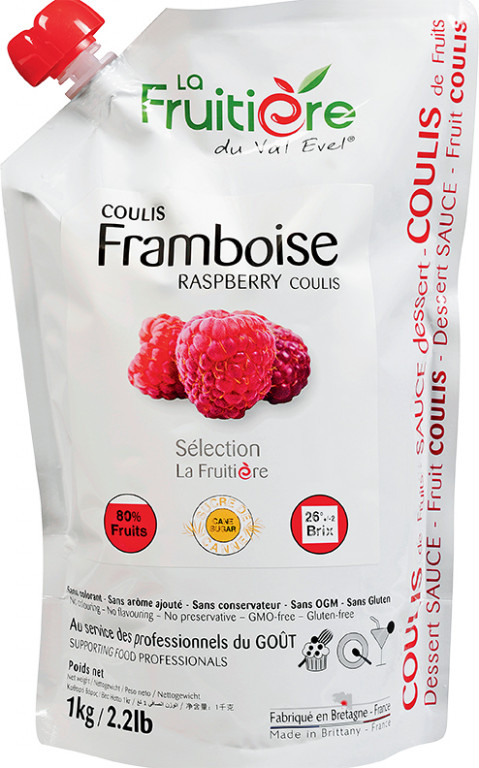

  • SPOUTED POUCH WITH CAP ON THE CORNER
  • SPOUTED POUCH WITH TOP CAP
  • STRAIGHT POUCH

TECHNICAL SPECIFICATIONS

OUTPUT: UP TO 240 POUCHES/ MIN (40 POUCHES/ LINE)

POUCHES VOLUME: FROM 50 ML TO 2 L

Thimonnier’s SF range is a filling capping machine for DOYPACK® spouted pouches and inverted pouches. Preformed pouches are placed on rails at the entrance of the machine, manually or automatically. They are sorted, can be printed (expiring dates, batch number…). The machine then fills the pouches, puts the caps on (using a measured tightening torque), then the capping is assessed by a camera or a laser before the pouches are ejected by the conveyor belt.

The new filling-capping machine can process two pouches simultaneously; double the capacity of the former generation, reaching 60 to 80 pouches per minute. What’s more, the compact modular machines designed by Thimonnier offer the user the ability to join together several SF and have them work in parallel.

The machine gives agro-food industrial companies the flexibility they need. First by accepting a large variety of pouches formats, from 90 ml to 2 liters, but also  but also by offering the possibility to use pouch from any suppliers.

STANDARD EQUIPMENT

Frame in stainless steel

Easy cleaning of production enclosure: No contact between delicate parts and the filled product

Access through transparent doors to the workstations with integrated security system

Pouches transfer, dosing and screwing controlled by servo motors

Control by PLC Recording and storage of 100 programs

ACCESSORIES

ULTRA CLEAN OPTION FOR YOGURT & DAIRY PRODUCTS IN SPOUTED POUCH AND INVERTED POUCH

The ultra-clean SF102 allows the filling of fresh or pasteurized products while extending the shelf life of the product. By decontaminating the spout and the cap and packaging in sterile air, Thimonnier guarantees a clean filling. The compact and accessible area of packaging is optimized for cleaning while ensuring visual control.
An effective solution to fight against the risks of contaminations but also against the food waste generated by too short expiration date.

Thanks to its experience in packaging dairy products, Thimonnier is one of the recognized partners of the major players in the sector. Present historically on the market with the pillow pouch, in pasteurized or aseptic version, it is now with the squeezable DOYPACK® pouch that the company conquers the giants of the dairy industry, especially in the Americas.



Discover our partnership with Claranor, specialist of pulsed light decontamination

Filling juices

UNITED ARAB EMIRATES

Full SD4 line [Doypack® pouch] and D6-5 [hot filling of 200 ml sta nd-up pouches]

- High output filling [15 000 pph]
- Flexibility of the line operation

Filling condensed sweetened milk, cream

COLOMBIA

Ultra-clean TD1000 DUO machine

- Specific design for Nestlé
- Clean dosing
- Efficiency of the sealing
- Respect of the hygienic requirements

Filling honey in SUP DOYPACK®

FRANCE

THD800 machine with lobes pump and electromagnetic flowmeter

- High accuracy for a product with a variable viscosity

Filling edible palm oil in SUP DOYPACK®

INDONESIA

TD1500 machine

- Clean dosing
- Efficiency of the sealing
- Production flexibility
