THD800 XL DET

8 STATIONS SERVO DRIVEN FILLING SEALING MACHINE FOR DOYPACK® STAND UP POUCH

Rotary filling machine for doypack pouch

DOYPACK® PREMADE POUCH



EASY MAINTENANCE
EASY CLEANING AND ACCESSIBILITY
SERVO DRIVEN
FLEXIBILITY (MONO/DUO/TRIO MODE)
MINIMAL FOOTPRINT

OUTPUT: UP TO 135 POUCHES/ MIN
POUCHES VOLUME: FROM 50 ML TO 5 L



DETERGENTS / COSMETICS



CHEMICAL/DETERGENT INDUSTRIES
CONCENTRATED DÉTERGENTS, POWDERS OR LIQUIDS, COOLANTS,
DISTILLED WATER, PAINT, MOTOR OIL, WINDSCREEN WASHER
FLUID…

COSMETIC /PHARMACEUTICAL INDUSTRIES
LIQUID SOAP, CREAMS, SHAMPOO, STERILE WATER, BODY OIL…



  • INVERTED STAND UP POUCH
  • SHAPED POUCH
  • SHAPED STAND UP POUCH WITH TOP CAP

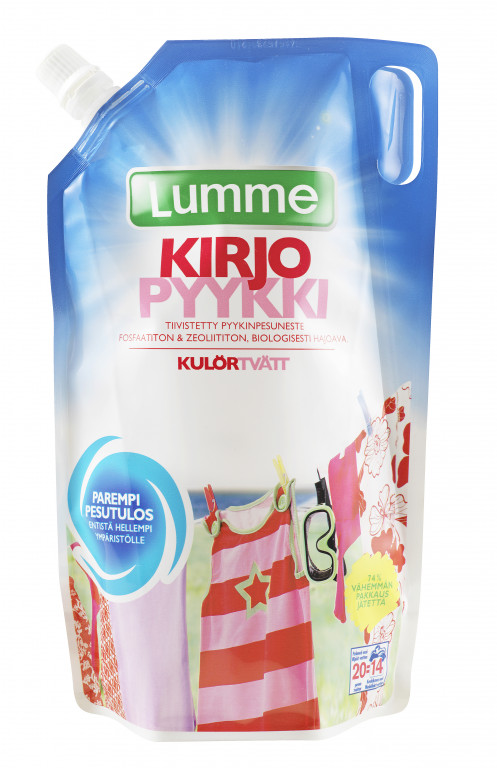

  • SPOUTED POUCH WITH CAP ON THE CORNER
  • SPOUTED POUCH WITH TOP CAP
  • STRAIGHT POUCH

TECHNICAL SPECIFICATIONS



DESIGNED FOR WORKING IN DIFFICULT AND AGGRESSIVE ENVIRONMENTS, THE THD800 XL IS PERFECTLY ADAPTED
TO FILL AND SEAL THE PREMADE DOYPACK® STAND UP POUCHES (WITH OR WITHOUT CAPS / HANDLES).

8 STATIONS (up to 3 dosing stations) allow various lay outs for filing, sealing and fiting accessories. Secured by the carrousel grippers,
the pouches are opened, filed, sealed, cooled and ejected.

Motions (rotation of the turret, opening grippers and regulations) are controlled by servo-motors.

The THD800 XL has been built to facilitate adjustments.
It is able to package in “MONO” (1 pouch/cycle), “DUO” (2 pouches/cycle) or “TRIO” mode (3 pouches/cycle).

An integrated programmable logic controller (in several languages) and one state of the art electronics ensure high precision
performances and repeatability throughout simple operating commands.
A storage capacity of 100 programs favors a fast change of sizes.



STANDARD EQUIPMENT



Welded steel structure mechanic, covered with stainless steel protections

Easy cleaning of production enclosure: no contact between delicate parts and the dosed product

Access through transparent doors to the workstations with integrated security system

Motions of the carrousel and grippers are controlled by servo-motors

Defects historisation and programmable logic controller
Recording and storage of an infiite number of recipes

Continuous adjustment of mechanical speed from 10 to 60 cycles/min
depending on pouch volume and product type (displayed on touch screen)



ACCESSORIES



Ink jet date coding / laser
Injection of neutral gas or steam
Dosing device for liquid/viscous products (pumps, electromagnetic or mass flw meters...) or solid products (grains, powders using auger filers, or MHW or bucket elevator)
Ultrasound sealing
Exit conveyor
Ultra-clean version (laminar flw, steam sterilisation...)
Automatic spouted pouches loarder



Filling juices

UNITED ARAB EMIRATES

Full SD4 line [Doypack® pouch] and D6-5 [hot filling of 200 ml sta nd-up pouches]

- High output filling [15 000 pph]
- Flexibility of the line operation

Filling condensed sweetened milk, cream

COLOMBIA

Ultra-clean TD1000 DUO machine

- Specific design for Nestlé
- Clean dosing
- Efficiency of the sealing
- Respect of the hygienic requirements

Filling honey in SUP DOYPACK®

FRANCE

THD800 machine with lobes pump and electromagnetic flowmeter

- High accuracy for a product with a variable viscosity

Filling edible palm oil in SUP DOYPACK®

INDONESIA

TD1500 machine

- Clean dosing
- Efficiency of the sealing
- Production flexibility
