M2 B4 - M3 T2 - M31 BS23

RADIO FREQUENCY SEALING MACHINES FOR MISCELLANEOUS APPLICATIONS

Radio Frequency and thermal Sealing

UNIVERSAL SEALING MACHINES

HIGH SEALING QUALITY HIGH-FREQUENCY MARKING

VERY ERGONOMIC MACHINES

EASY TO USE

ACCURATE SETTINGS

STRONG FRAME – LONG SERVICE LIFE

Industry

DESIGNED FOR RF SEALING OF SMALL ITEMS OR REWORKING OF SEALS ON PVC, PU, EVA FILMS:

SMALL LEATHER GOODS
Binders, document folders, dividers, fabrication of cases, pouches, card holders, watch bracelets, …

HEALTH-CARE INDUSTRY
Medical imaging media, serum, blood bags and transfusion bags, …

TEXTILE INDUSTRIES
Waterproof clothing, coated fabrics, installation of zippers, buttons, reworking of items manufactured on large presses, …

OTHER INDUSTRIES
Covers, childcare articles, sealing of blisterpacks and thermoformed shells, placement of brand names, inflatable toys and articles, installation of valves, flexible recipients of various shapes, miscellaneous displays, miscellaneous marking and inlaying, cutting and welding on coated or non-coated cardboard boxes, stretch ceilings, and welding of acetate boxes, …

TECHNICAL SPECIFICATIONS

PRESS

C-frame press with guide device (stroke 120 mm) = ensuring exceptional vertical precision: - crush limit micrometric stop - adjustable stroke limit stop

Electrode holder + ball joints with adjustment jacks to ensure perfect tool support for parallelism

Sensitive foot pedal control may be coupled with pneumatic assistance (ZA), thereby allowing the operator to use both hands to position parts to be welded and allows, for example, elements to be manually pulled from the material rollers.

An electronic timer is used to set how long pressure is applied.

The very rigid support frame is equipped with a table for easy positioning of parts to be welded.

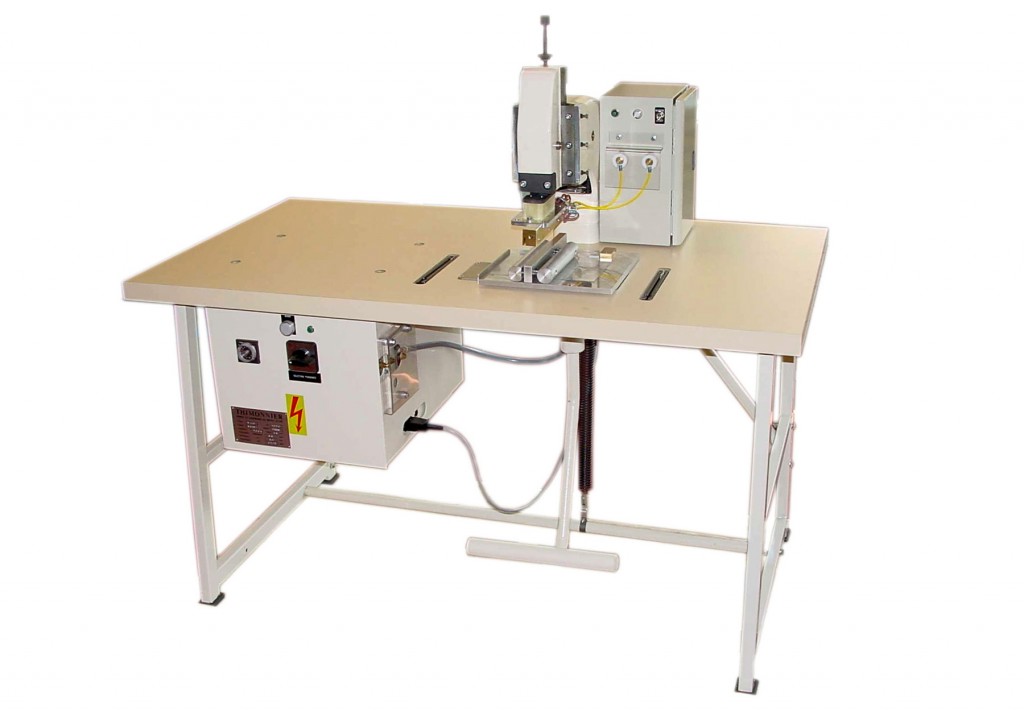

M2 B4

Tube frame with table 1000 x 700 mm
Lower table 320 x 120 mm
Upper table (max.) 220 x 250 mm
Max. clearance (without riser) between lower table and tool support 40 mm
Max. pressure: Pedal control 100 daN
Max. pressure: With pneumatic assistance ZA 185 daN

M3 T2

Tube frame with table 1300x 700 mm
Lower table 620 x 420 mm (removable)
Upper table (max.) 220 x 250 mm
Max. clearance (without riser) between lower table and tool support 40 mm
Max. pressure: Pedal control 100 daN
Max. pressure: With pneumatic assistance ZA 185 daN

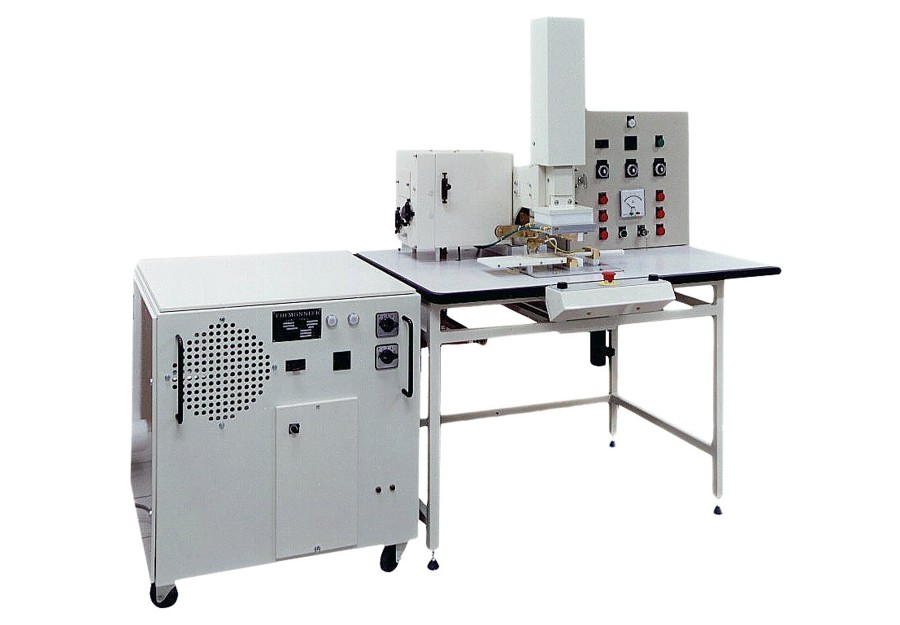

M31 BS23

Tube frame with table 1200 x 800 mm
Lower table 620 x 420 mm (amovible)
Upper table (max.) 320 x 420 mm
Max. clearance (without riser) between lower table and tool support 40 mm
Max. pressure: Pedal control 100 daN
Max. pressure: With pneumatic assistance ZA 185 daN

STANDARD EQUIPMENT

Many options available on these presses allow them to be adapted to a wide variety of applications:

- Tools and upper tables (M3) with electric heating for inlyaing or H.F. sealing of rigid materials (screen fabrics, PVC shells, etc.)

- Manual rotating plate with two stations manual turning two posts, diameter 500 mm with pneumatic elevation (M3)

- Front drawer for accurate positioning of the parts

- Plate and C-frame

- Vertical head extension for greater clearance at the rear

- Forward head extension for edge work

- Pedal at 90° for tarp or stretch ceiling sealing

- Adaptation MZ for sealing waders on PVC boots
